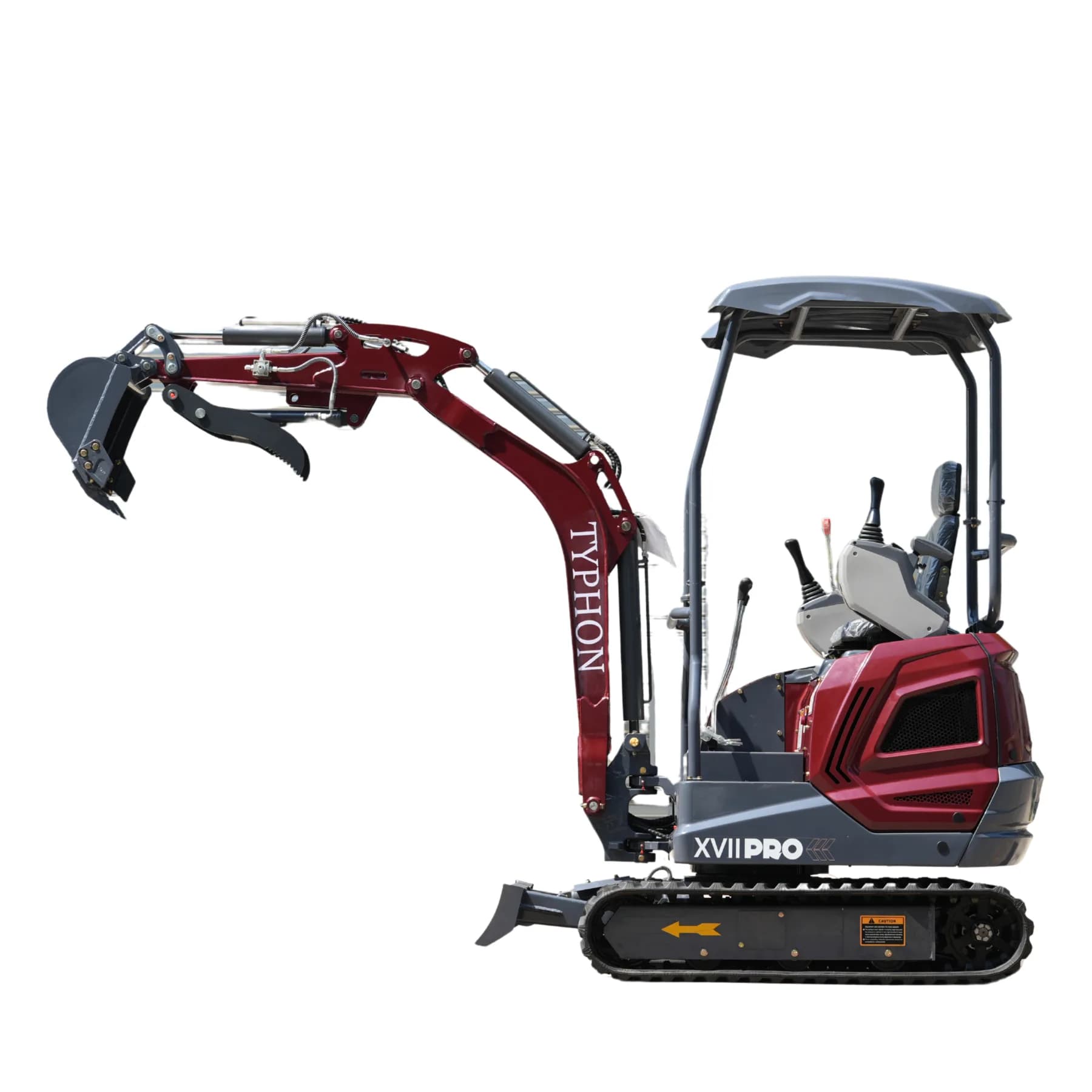

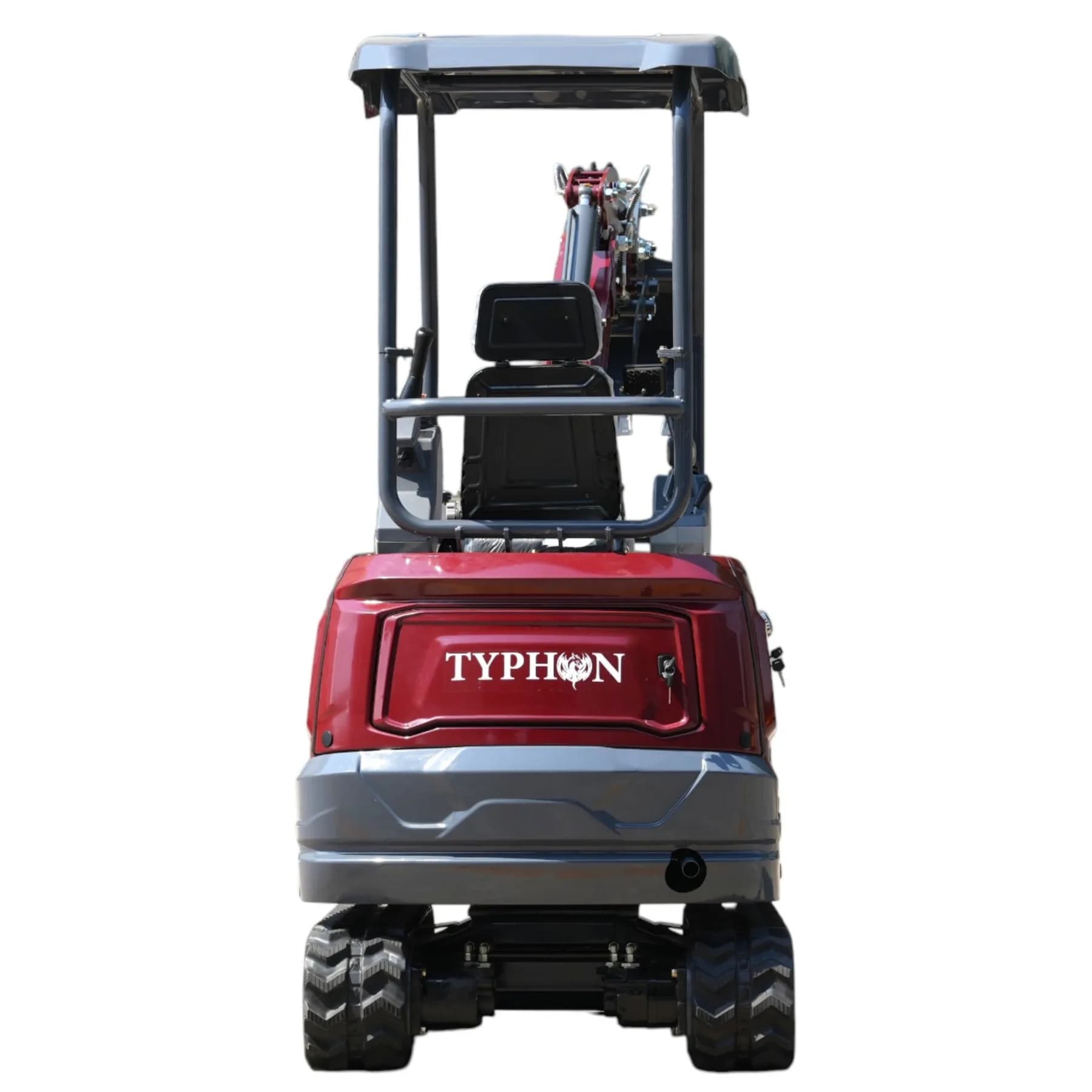

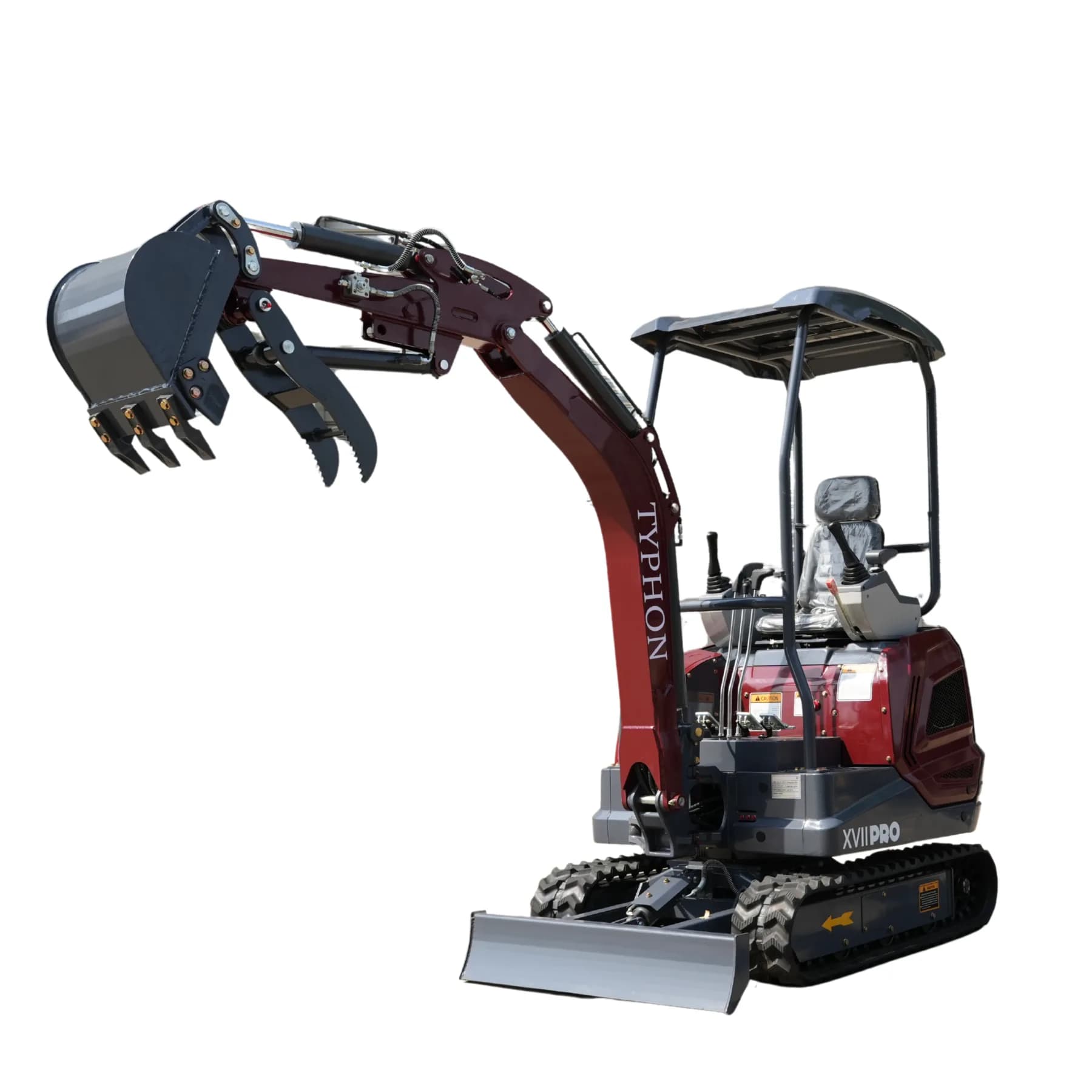

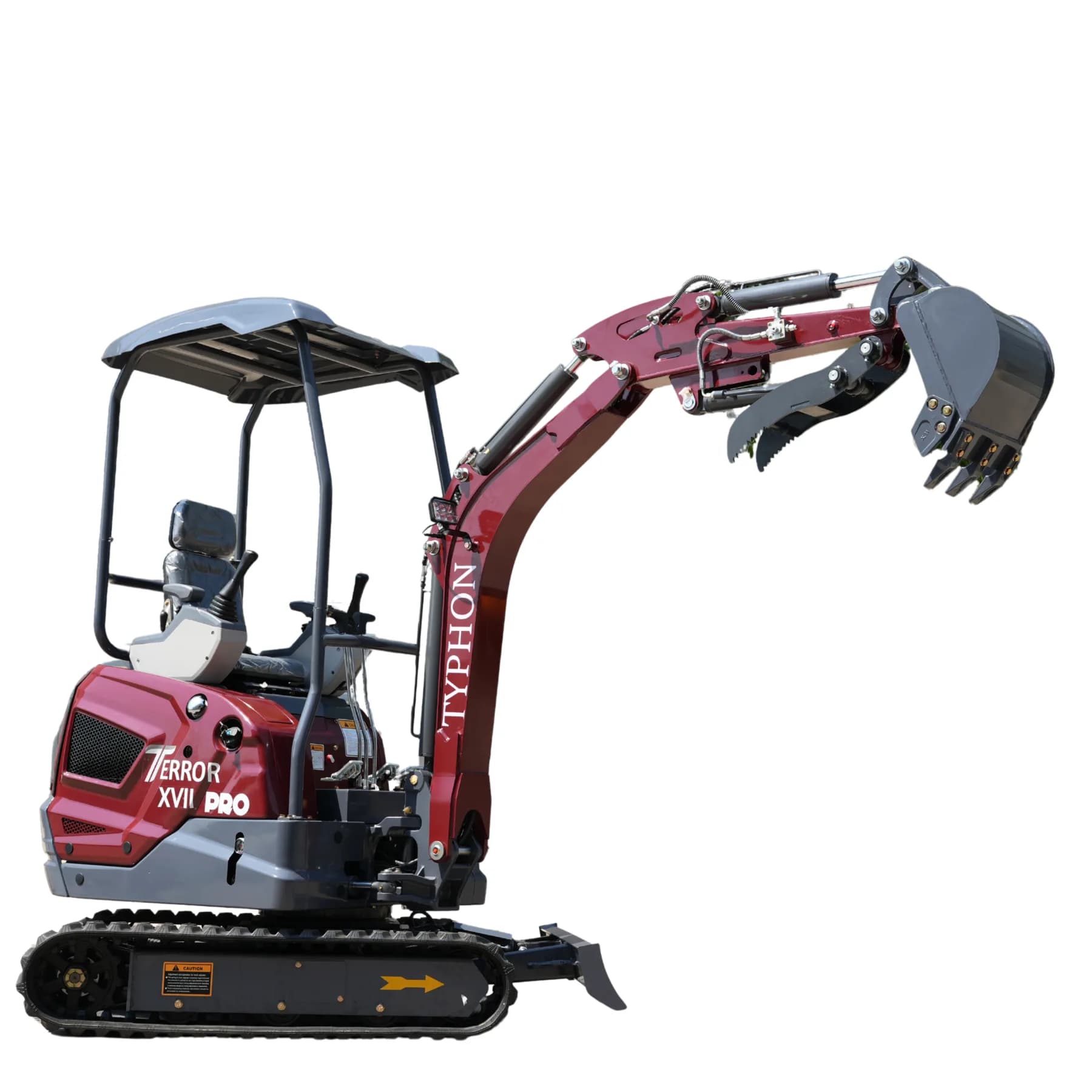

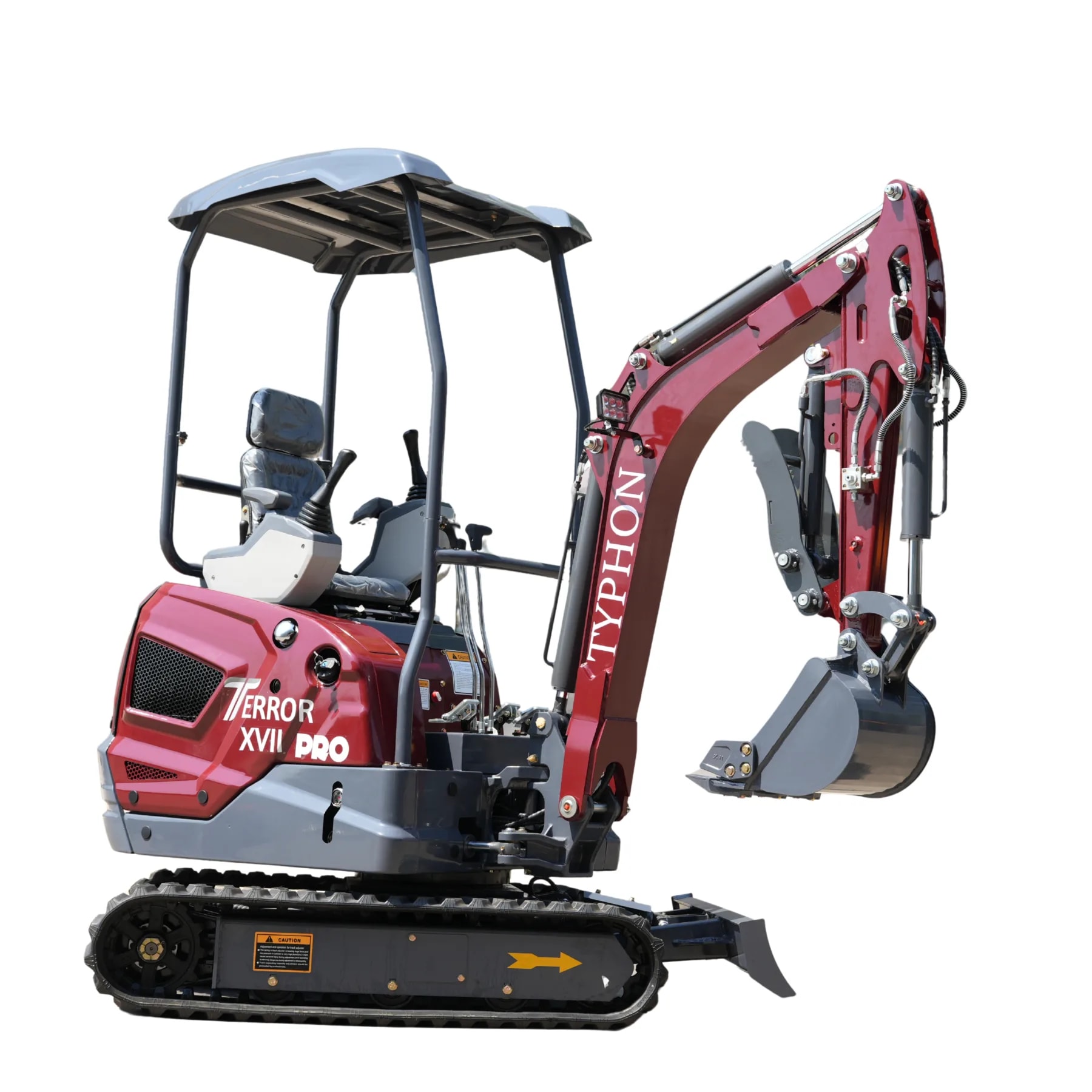

Introducing This latest TYPHON TERROR XVII PRO with an operating weight of 3,800 lb, this mini excavator produces the stability, power, and durability required for demanding jobs. Outfitted with upgraded protection, refined hydraulics, and enhanced operator comfort, this equipment is created to tackle tough conditions with confidence. Reinforced components and hydraulic protection contribute to maximize uptime, while the redesigned operator station keeps you comfortable and productive throughout the day.

1. EPA-Certified Kubota Engine

• Kubota D902 diesel engine: Producing 15.8 HP at 2200 RPM and up to 20.4 HP at 3600 RPM, This Japanese-built Kubota D902 is engineered as a streamlined vertical 3-cylinder, 4-cycle diesel engine built to support smooth power delivery, outstanding fuel work output, and durability over time. Trusted worldwide for its reliability.
• EPA-certified output: Constructed to meet strict EPA emissions standards, enabling you to work confidently while maintaining clean and jobsite-ready capability.
• Extended runtime capacity:with a generous 4.76-gallon hydraulic oil reservoir and a 3.17-gallon fuel tank, This machine is constructed to stay productive longer, reducing downtime and promoting trustworthy capability throughout demanding workdays.

2. Advanced Hydraulic System

• High-pressure hydraulic system: Operating at 2,611 PSI (2,610.68 PSI), This hydraulic system supplies durable and consistent power for digging and demanding attachment applications.
• Precision pilot controls: Outfitted with a 1.82 GPM pilot flow, This system produces smooth, responsive, and accurate use for grading, trenching, and detailed work.
• Dual auxiliary hydraulic circuits: Constructed for superior flexibility, This double-side auxiliary throttle valves supply uninterrupted hydraulic flow to powered attachments and the hydraulic thumb simultaneously. Whether drilling with an auger, breaking concrete, or handling materials, this 3,800lbs mini excavator keeps you productive without the need for setup changes.
• Integrated hydraulic oil cooler: Contributes to prevent overheating during continuous use, aids trusted use in hot climates, and extends hydraulic system life.

3. Superior Mobility & Reach

• Precision offset boom swing: Bringing 45° left swing and 55° right swing, This offset boom makes possible accurate digging around walls, foundations, and limited-access spaces with minimal repositioning.
• Smooth full 360° swing: Combined with a capable 6.07 GPM main hydraulic flow, This continuously rotating upper structure motor supplies effortless positioning, faster cycle times, and outstanding flexibility for digging, loading, and cargo handling from virtually any angle.
• Confident travel speed: Traveling up to 1.30 MPH, This machine moves smoothly and confidently around the jobsite.
• Sure-Grip rubber tracks: Built with wide 9.06-inch tracks, This undercarriage produces excellent flotation, superior traction, and consistent stability across muddy, soft, and uneven terrain.

4. Exceptional Digging output

• Capable 3,147 lbf digging force: Produces This breakout power needed to penetrate hard soil, compacted ground, and roots efficiently, helping complete demanding tasks more efficiently.
• All-in-One work package: Built with a 16.54-inch bucket, 1.41 cu ft bucket capacity, 86.50-inch maximum digging depth, standard dozer blade, and hydraulic thumb clip, This TERROR XVII PRO is ready to dig, grade, grab, and clean up with exceptional flexibility while moving more material in fewer passes.

5. Premium-Modern Design & Operator Comfort

• Signature Dark Cherry design: The bold and modern exterior gives this equipment a distinctive, aggressive appearance that stands out on any jobsite.
• Ergonomic operator seat: Outfitted with a premium headrest and armrests to supply exceptional aid and comfort during extended working hours.
• Spacious operator station:with an interior height of 41.34 inches and width of 20.08 inches, This roomy cabin contributes to minimize fatigue and keeps operators productive throughout long shifts.
• Centrally located service access: Both This diesel fuel tank and hydraulic oil reservoir are conveniently positioned in one location, enabling quick refilling, easier servicing, and less downtime throughout the workday.
• Armored hydraulic hoses and protected valves: Work-ready armored hoses and shielded hydraulic valves are created to resist abrasion, impacts, and harsh working conditions. Together, they contribute to prevent leaks, minimize downtime, and maximize long-term reliability in demanding applications.

Don't settle purpose-built to support less when real power is within reach.

Why Choose TYPHON MACHINERY?

Customer Assurance: We supply responsive service and trustworthy parts aid to promote your machine runs smoothly for years.

output You Can Trust: Every TYPHON excavator is built with premium components for durability, capability, and operator safety.

Global Reliability: Trusted by contractors and builders across This USA and beyond for producing consistent quality and work output.

Your job-site work will reach new heights with the TYPHON TERROR XVII Pro Mini Excavator. Compact, tough, and jobsite-ready, this trench digger machine is your ideal companion for successful projects at a mini scale. Trust TYPHON Machinery for reliability, toughness, and capability that surpass expectations. Elevate your construction game with the TYPHON TERROR XVII Pro - The ultimate solution for all your excavation needs!
